The aerospace industry demands manufacturing capabilities that push the boundaries of precision, complexity, and reliability. Every component must meet exacting specifications while maintaining the strength and durability required for flight-critical applications. 7-axis machining technology has emerged as a game-changing solution for aerospace manufacturers, enabling the production of intricate components that would be impossible or prohibitively expensive using traditional machining methods.
Shamrock Precision's precision aerospace machining services leverage advanced 7-axis technology to meet the stringent requirements of aerospace manufacturers. Our capabilities support the production of everything from turbine blades and engine housings to structural components and flight control systems. By combining cutting-edge equipment with decades of aerospace expertise, we deliver components that meet the industry's most demanding standards for quality, accuracy, and performance.
Understanding 7-Axis Machining for Aerospace Applications
7-axis machining represents the pinnacle of CNC technology, offering unprecedented flexibility and precision for complex aerospace components. Unlike traditional 3-axis or even 5-axis machines, 7-axis systems provide movement along the standard X, Y, and Z linear axes plus four additional rotational axes. This expanded capability enables continuous tool contact with the workpiece from virtually any angle, eliminating the need for multiple setups and maintaining critical tolerances throughout the manufacturing process.
The aerospace industry particularly benefits from this technology due to the complex geometries inherent in modern aircraft design. Components often feature compound curves, internal cooling channels, and precisely angled surfaces that optimize aerodynamic performance. 7-axis machining addresses these requirements by allowing simultaneous movement across all axes, creating smooth transitions and maintaining surface continuity that would be difficult to achieve through conventional methods.
Material considerations play a crucial role in aerospace applications, where exotic alloys like titanium, Inconel, and specialized aluminum grades are common. These materials present unique machining challenges due to their hardness, heat resistance, and tendency to work-harden during cutting. 7-axis technology provides the tool positioning flexibility necessary to maintain optimal cutting angles throughout the process, reducing tool wear and improving surface finish quality on these demanding materials.
Critical Aerospace Components Produced Through 7-Axis Machining

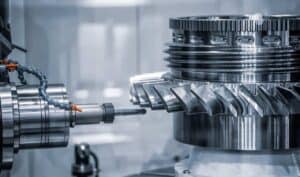

Turbine blades exemplify the complexity that 7-axis machining handles with precision. These components feature intricate airfoil profiles, internal cooling passages, and root geometries that must maintain exact specifications to ensure engine efficiency and reliability. The continuous tool movement possible with 7-axis systems creates the smooth surface transitions essential for optimal airflow while maintaining the tight tolerances required for proper assembly and balance.
Engine housings and casings benefit significantly from 7-axis capabilities when incorporating complex port geometries and mounting features. These large components often require machining from multiple angles to create proper fuel passages, sensor mounts, and assembly interfaces. Single-setup processing on 7-axis machines maintains the geometric relationships between features, ensuring proper alignment and fit during engine assembly.
Structural aerospace components like wing spars, fuselage frames, and landing gear assemblies leverage 7-axis technology for weight optimization. Modern designs incorporate pocketing, ribbing, and organic shapes that remove unnecessary material while maintaining strength. The ability to access all surfaces without repositioning enables the creation of these complex lightweighting features while maintaining structural integrity.
Advantages of 7-Axis Technology in Aerospace Manufacturing
Single-setup processing stands as perhaps the most significant advantage of 7-axis machining for aerospace applications. When navigating the challenges of aerospace machining, maintaining geometric relationships between features proves critical. Traditional multi-setup processes introduce positioning errors that accumulate with each operation. 7-axis technology eliminates these stack-up errors by completing all features in one continuous operation, ensuring that critical dimensions remain within aerospace's stringent tolerances.
Surface finish quality reaches new levels with 7-axis machining due to optimal tool engagement throughout the cutting process. The ability to maintain perpendicular tool orientation to complex surfaces reduces scalloping and improves surface smoothness. This capability proves especially valuable for aerodynamic surfaces where finish quality directly impacts performance. Components often require minimal post-processing, saving time and preserving dimensional accuracy.
Lead time reduction through 7-axis technology provides aerospace manufacturers with competitive advantages in today's fast-paced market. Eliminating multiple setups, reducing programming complexity for complex parts, and minimizing handling all contribute to faster throughput. Projects that might require weeks using conventional methods can often be completed in days, supporting rapid prototyping and shorter production cycles for aerospace programs.
Material-Specific Considerations for Aerospace 7-Axis Machining
Titanium alloys, prevalent in aerospace for their strength-to-weight ratio and corrosion resistance, present unique challenges that 7-axis machining addresses effectively. The technology enables constant optimization of cutting angles to manage heat generation and chip evacuation. Tool paths can be programmed to minimize dwell time in any area, preventing the work hardening that makes titanium notoriously difficult to machine.
Nickel-based superalloys like Inconel require similar considerations but with even greater emphasis on thermal management. 7-axis systems facilitate trochoidal milling strategies and optimized chip thinning that distribute heat more effectively. The flexibility to approach features from optimal angles reduces cutting forces, extending tool life and maintaining dimensional stability in these temperature-sensitive materials.
Aluminum aerospace alloys, while more forgiving than titanium or Inconel, still benefit from 7-axis precision when producing thin-walled structures common in aircraft design. The technology enables aggressive material removal rates while maintaining wall thickness consistency through optimal tool positioning. High-speed machining strategies combined with 7-axis flexibility produce excellent surface finishes suitable for anodizing or other aerospace finishing processes.
Quality Control and Precision Standards
Aerospace quality requirements demand exceptional attention to measurement and verification throughout the manufacturing process. 7-axis machining supports these needs through integrated probing systems that verify critical dimensions without removing parts from the machine. In-process measurement enables real-time adjustments to maintain tolerances, particularly important for long-running aerospace production jobs where tool wear could affect dimensional accuracy.
Geometric dimensioning and tolerancing (GD&T) requirements in aerospace often specify complex relationships between features that must be maintained precisely. The advanced capabilities of 7-axis machining for precision manufacturing excel at maintaining these relationships through single-setup processing. Profile tolerances, true position requirements, and perpendicularity specifications all benefit from the inherent accuracy of completing all features without repositioning.
Documentation requirements for aerospace traceability integrate seamlessly with modern 7-axis systems. Digital records capture all machining parameters, tool usage, and measurement data for each component. This comprehensive documentation supports AS9100 quality management requirements and provides valuable data for continuous improvement initiatives. The ability to reproduce exact conditions for replacement parts years later proves invaluable for aerospace maintenance operations.
Advanced Programming Strategies for Aerospace Components
CAM software optimization for 7-axis aerospace applications requires sophisticated strategies that balance efficiency with precision. Modern programming systems simulate entire machining operations, identifying potential collisions and optimizing tool paths for minimum cycle time. Aerospace programmers leverage these capabilities to create programs that maximize material removal rates while maintaining the surface quality and dimensional accuracy critical for flight components.
Toolpath strategies specific to aerospace materials and geometries take full advantage of 7-axis flexibility. Constant engagement milling maintains consistent chip loads throughout complex contours, reducing tool stress and improving predictability. Adaptive clearing routines remove bulk material efficiently before switching to finishing strategies that prioritize surface quality. The ability to blend different strategies seamlessly within single programs optimizes overall cycle times.
Post-processor development for 7-axis aerospace applications requires careful attention to machine kinematics and control capabilities. Custom post-processors ensure that theoretical tool paths translate accurately to machine motion, maintaining programmed feed rates and accelerations throughout complex simultaneous movements. This precision in translation from CAM to machine code proves essential for maintaining the tight tolerances aerospace components demand.
Cost Efficiency Through 7-Axis Implementation
Initial investment in 7-axis technology pays dividends through reduced overall manufacturing costs for complex aerospace components. While machine costs exceed those of conventional equipment, the elimination of multiple operations, reduced fixturing requirements, and decreased labor content often result in lower per-part costs. Aerospace manufacturers report typical cost reductions of 30-50% on complex components when transitioning from traditional to 7-axis manufacturing methods.
Tooling cost optimization through 7-axis technology stems from better cutting conditions and reduced tool count requirements. The ability to maintain optimal approach angles throughout machining operations extends insert life significantly. Additionally, the flexibility to use shorter, more rigid tooling due to superior access angles reduces deflection and improves accuracy. These factors combine to reduce tooling costs per part substantially.
Reduced scrap rates represent another significant cost advantage of 7-axis aerospace machining. Single-setup processing eliminates many sources of error that lead to scrapped parts in conventional manufacturing. The ability to verify dimensions in-process and make corrections before completion further reduces scrap. For expensive aerospace materials and complex components requiring hundreds of hours of machining, scrap reduction provides substantial financial benefits.
Future Developments in Aerospace 7-Axis Technology
Automation integration with 7-axis systems continues advancing to meet aerospace production demands. Robotic part loading, automated tool management, and lights-out manufacturing capabilities extend the productivity advantages of 7-axis technology. Aerospace manufacturers increasingly implement flexible manufacturing cells that combine multiple 7-axis machines with automated material handling for maximum efficiency.
Hybrid manufacturing approaches combining additive and subtractive processes in 7-axis platforms open new possibilities for aerospace components. These systems can build near-net shapes through directed energy deposition or powder bed fusion, then machine critical features to final tolerances. This combination proves particularly valuable for repair operations on expensive aerospace components or for creating parts with internal features impossible through conventional methods.
Digital twin technology promises to further enhance 7-axis aerospace manufacturing through real-time process optimization. Virtual models of machines and processes enable predictive maintenance, automated parameter optimization, and enhanced quality prediction. As these technologies mature, aerospace manufacturers will achieve even greater efficiency and reliability from their 7-axis investments.
Industry Standards and Regulatory Compliance
The aerospace industry operates under stringent quality and safety standards that 7-axis machining must support. NASA's Technical Standards System provides comprehensive standards and qualification requirements for aerospace manufacturing, including additive manufacturing processes that increasingly integrate with traditional machining. These standards ensure that components meet the rigorous requirements for spaceflight and aviation applications.
Quality management systems in aerospace manufacturing must comply with AS9100 requirements. This standard includes ISO 9001:2015 quality management system requirements and specifies additional aviation, space, and defense industry requirements. 7-axis machining facilities must demonstrate their ability to consistently meet these standards through documented processes, traceability systems, and continuous improvement programs.
Partner with Shamrock Precision for Advanced Aerospace Manufacturing
7-axis machining technology has become indispensable for meeting the aerospace industry's demanding requirements for precision, complexity, and efficiency. The ability to produce intricate components in single setups while maintaining exceptional accuracy provides aerospace manufacturers with the capabilities needed for next-generation aircraft designs.
Shamrock Precision combines state-of-the-art 7-axis technology with deep aerospace expertise to deliver components that meet the industry's most stringent requirements. Our commitment to quality, precision, and continuous improvement ensures that every component we produce contributes to the safety and performance of aerospace systems worldwide.
Ready to leverage advanced 7-axis machining for your aerospace components? Contact our aerospace specialists to discuss how our precision manufacturing capabilities can support your most challenging projects.
Request Your Aerospace Machining Quote Today
Frequently Asked Questions About 7-Axis Aerospace Machining
What aerospace components benefit most from 7-axis machining technology?
Complex turbine blades, impellers, and blisks (blade-integrated disks) gain the most significant advantages from 7-axis machining due to their intricate geometries and strict tolerances. Structural components with compound angles, organic lightweighting features, and multiple datum requirements also benefit substantially. Any aerospace part requiring multiple traditional setups or having hard-to-reach features typically sees dramatic improvements in quality and cost through 7-axis manufacturing.
How does 7-axis machining improve aerospace part quality compared to 5-axis?
7-axis machining eliminates more setup operations than 5-axis, further reducing tolerance stack-up and maintaining better feature relationships. The additional axes provide superior tool access, enabling optimal cutting angles throughout the entire part geometry. This results in better surface finishes, tighter tolerances, and improved consistency. Aerospace manufacturers typically see 20-30% improvement in capability indices (Cpk) when moving from 5-axis to 7-axis for complex components.
What tolerance capabilities can 7-axis achieve for aerospace applications?
Modern 7-axis machines routinely hold tolerances of ±0.0002 inches (±0.005mm) for critical aerospace features, with some achieving even tighter specifications under controlled conditions. True position tolerances of 0.001 inches and profile tolerances of 0.002 inches are standard capabilities. Surface finish requirements of 16-32 microinches Ra are consistently achievable, with some applications reaching 8 microinches Ra directly from the machine.
How do you justify the investment in 7-axis technology for aerospace manufacturing?
Return on investment typically occurs within 18-24 months for shops with sufficient aerospace work volume. Cost justification factors include: 50-70% reduction in setup time, 30-40% decrease in total machining time for complex parts, 80-90% reduction in fixturing costs, and virtually eliminated scrap from setup errors. Additionally, the ability to bid on more complex, higher-margin aerospace work often provides the strongest financial justification.
What training is required for programmers and operators working with 7-axis aerospace applications?
Programmers typically require 3-6 months to become proficient in 7-axis aerospace applications, including advanced CAM software training and understanding of simultaneous axis movement strategies. Operators need 2-4 weeks of hands-on training to handle basic operations safely. Ongoing education in aerospace materials, cutting strategies, and quality requirements ensures optimal utilization. Most successful implementations include partnership with machine builders for comprehensive training programs.
